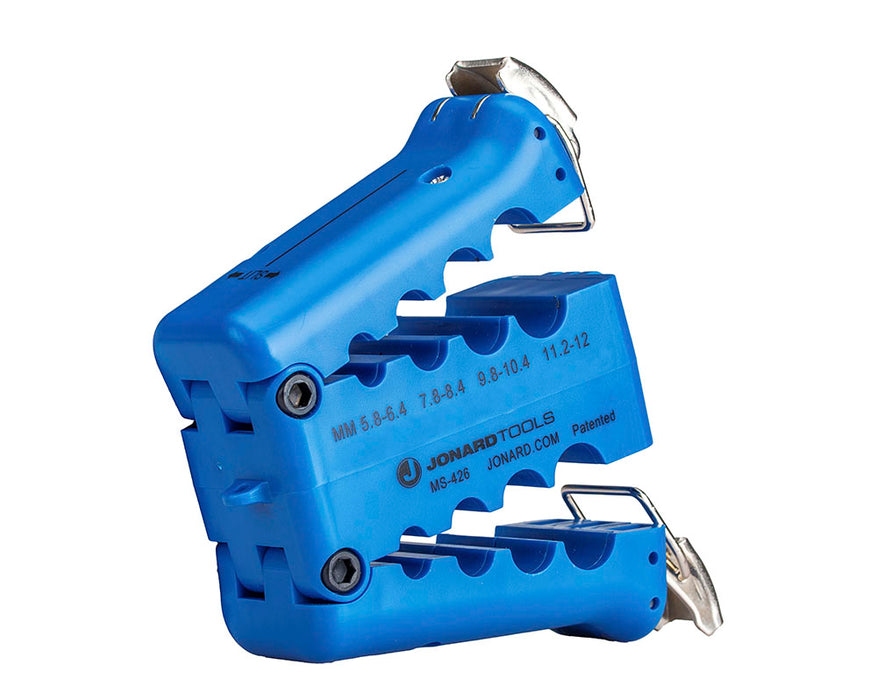

Jonard Mid Span Slit and Ring Tool (5.8mm - 12mm)

The PATENTED and award-winning MS-426 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibres in Prysmian ESMF Optical Mini FlexTube® cables (as well as other thick-walled 5.8 to 12 mm diameter jackets, including Corning equivalent cables). Building on the popularity of the Jonard Tools MS-6 and MS-26 Fibre Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.

• Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 5.8 mm to 12 mm
• One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
• Compact design weighing less than 227g with included tethering hole makes it perfect to use in tight spaces or on the go
• Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
• This tool was specially designed for use on Prysmian ESMF Optical Mini FlexTube® cables and other similar style cables, including Corning equivalent cables
• Replacement blade set available, part number: MS-426RB
• Blades last for 5,000 slits/cuts
• All Jonard MS Series Mid Span Tools are patented for their unique design and functionality. MS-426 won the 2019 Cabling Installation & Maintenance Gold award for innovation and MS-6 won the same prestigious award in 2018!

Groove Sizes: 5.8-6.4mm | 7.8-8.4mm | 9.8-10.4mm | 11.2-12mm

Function
Function: Slit & Ring

Cable Diameter
Cable Diameter: 5.8 mm - 12 mm

Specifications
Cut Type: Slit, Ring
Number of Slitting Grooves: 4
Number of Ringing Grooves: 4
Cable Type: Thick-walled Jackets (up to 2.0mm thick)
Cable Diameter: 5.8mm - 12mm
Dimensions: 9.1cm x 3.9cm x 8.6cm
Weight: 208g
